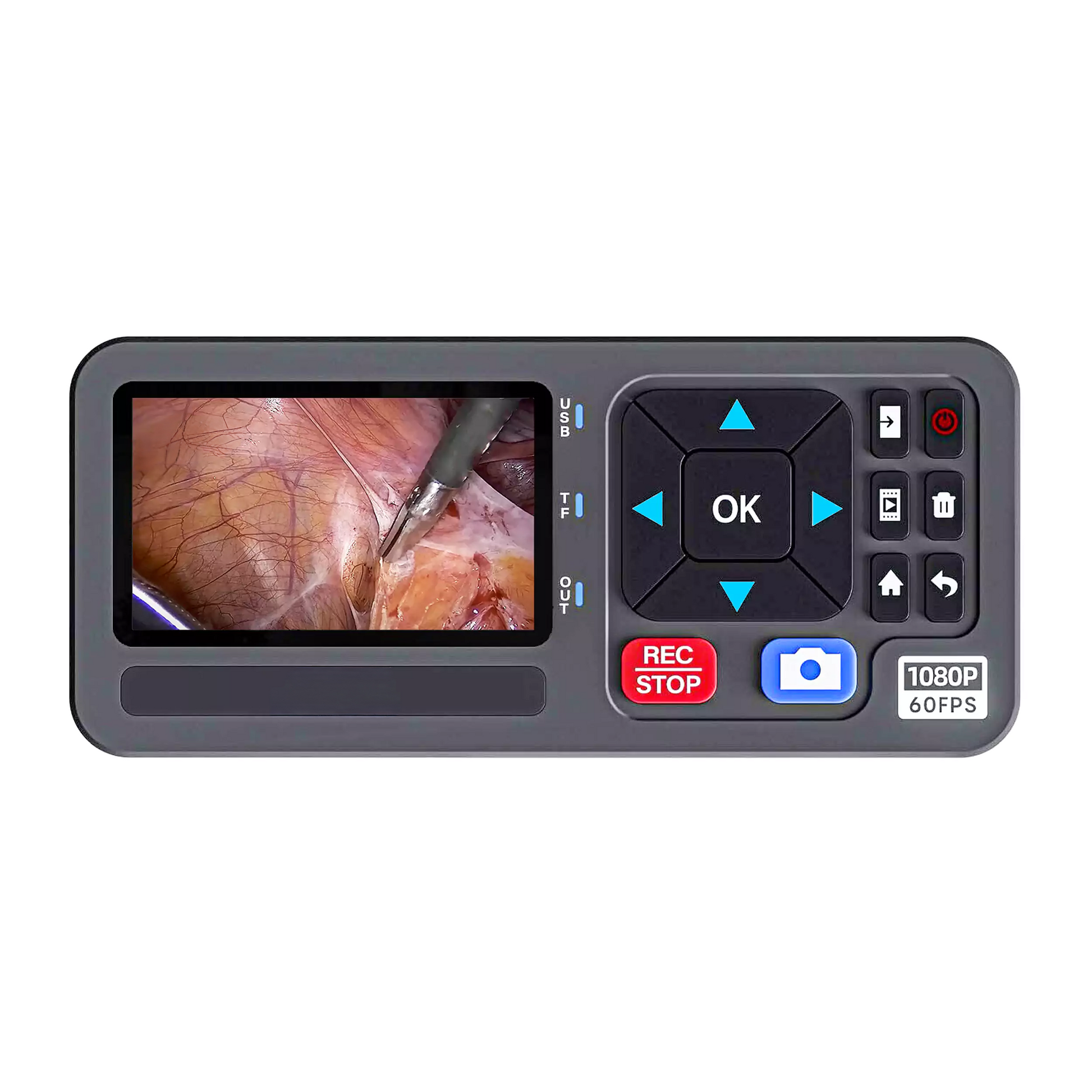

4K Medical Surgical Recorder for Laparoscopy

Warranty : 1 year.



Return Policy : Returnable upto 7 Days.







Features of Medical Surgical Recorder with 4k input Resolution to record Endoscopy and Laparoscopy procedures.







Integrated Display: Real-time visualization of surgical events on a high-resolution screen, enabling immediate review and documentation.

Recording Capabilities: Capture surgical procedures in high definition, ensuring comprehensive documentation of key events and actions.

Customizable Settings: Tailor recording preferences and display options to suit specific surgical procedures and user preferences, maximizing versatility.

Data Management: Efficient storage and retrieval of recorded data, facilitating post-operative review and analysis.

Enhanced Visibility: Improve surgical documentation with clear and detailed visualization of procedures, enhancing accuracy and completeness.

Real-time Feedback: Instantly review surgical events as they occur, enabling immediate adjustments and interventions as needed.

Efficient Communication: Share recorded procedures with colleagues for consultation and collaboration, fostering interdisciplinary teamwork and knowledge sharing.

Streamlined Workflow: Simplify documentation processes with an all-in-one solution, reducing administrative burden and improving efficiency.

Optimized Training: Utilize recorded procedures for training purposes, enhancing educational opportunities for medical professionals.

Features:

* HDMI/VGA/YPbPr/CVBS Input

* HDMI 1080p Loop-out

* Recording in 720p/1080p

* Schedule Recording

* Support Snapshot in Recording

* USB Drive or TF Card Storage

* Support Playback

* Remote Control

* Compact and portable

* Easy to use



Specifications:

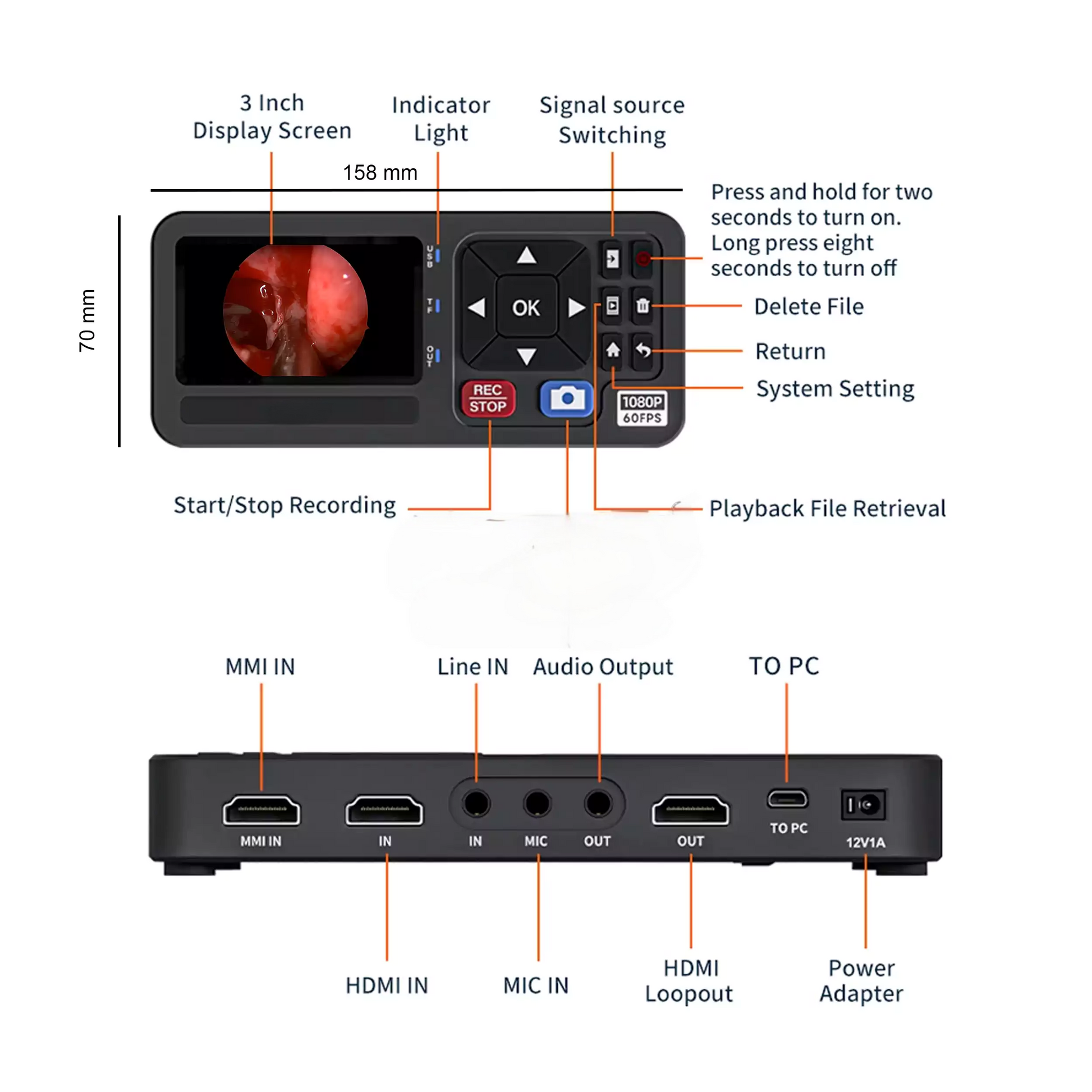

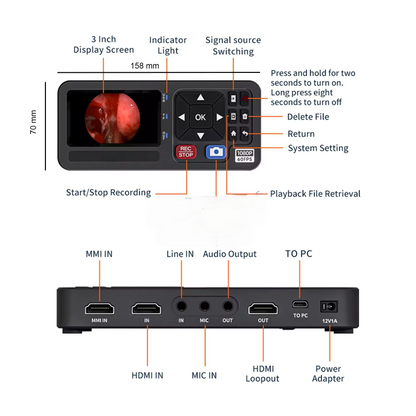

* Video Input (Switchable): 1xHDMI, 1xVGA, 1xCVBS, 1xYPbPr

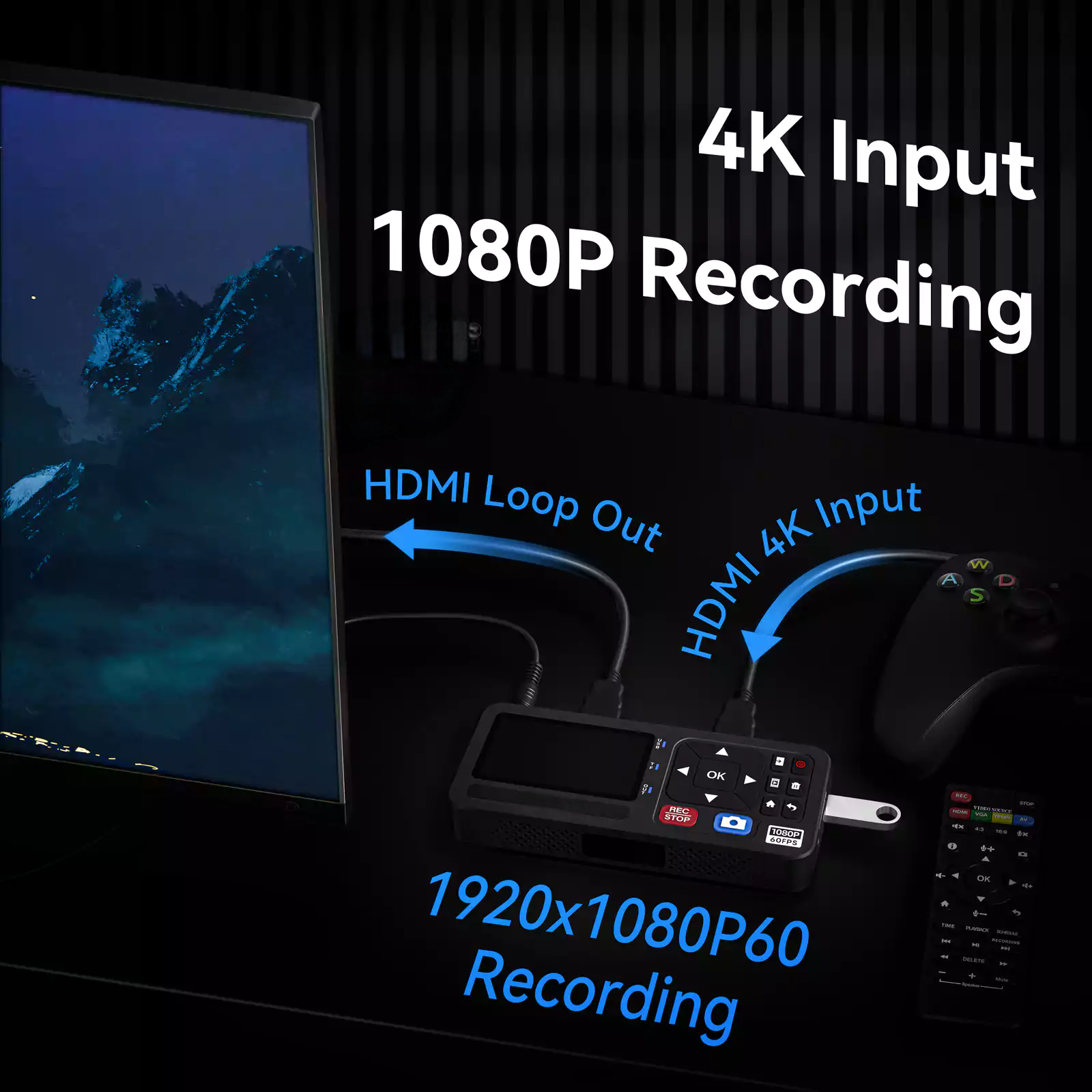

* Video Resolution: 4096x2160p30, 1920x1080 at 60P/50p, 1920x1080 at 60i/50i/1280x720 at 60p/50p 720x576i/720x480i

* Loop-out: 1xHDMI (1080p)

* Audio: HDMI/RCA Audio/External Line In

* Display Screen: 3 Inch

* Remote Control: Yes

* Screenshot in Recording: Yes

* Playback: Yes



Alone Mode:

* Record Resolution: 1920x1080/1280x720/1280x1024/1024x768

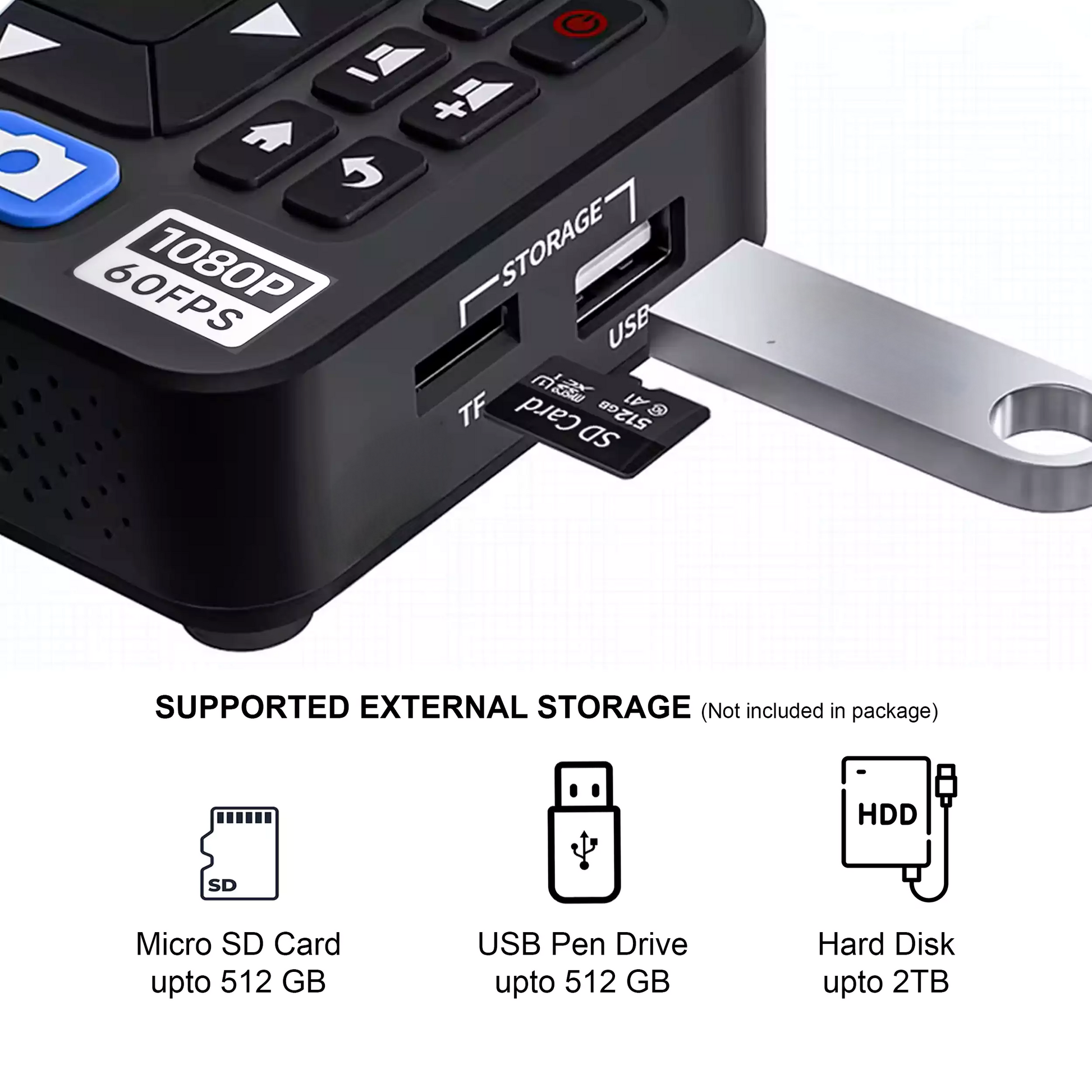

* Storage Device: USB Drive (up to 512G), Hard disk (up to 2T); SD card (up to 512G)

* Storage File System: FAT32/exFAT/NTFS

* Record Format: MP4 (H.264 Codec)

* Video Bitrate: Low 4MB/Mid 10MB/High 18MB

* Audio Bitrate: 128KB

* Size of Each File: 4G (FAT32) or 16G (NTFS/exFAT)

* Schedule Recording: Support



Computer Mode:

* Record Resolution: 1920x1080/1280x720/1280x1024/1024x768

* Compatible UVC/UAC: Yes

* Compatible System: For Win10/Mac OS/Linux

* Compatibility with 3rd application software: For OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype

* Attached Software: UXplayer (buy separately)



General:

* Language: English/Chinese/Japanese/Italian

* Dimension (WxLxH): 158 x 70 x 25mm/6.2 x 2.8 x 1"

* Net Weight: 0.18kg/0.4lb

* Temperature: 0-55℃ (Working); -20 to 80℃ (Storage)

* Power/Consumption: 12V DC 1.0A/5W





Note:

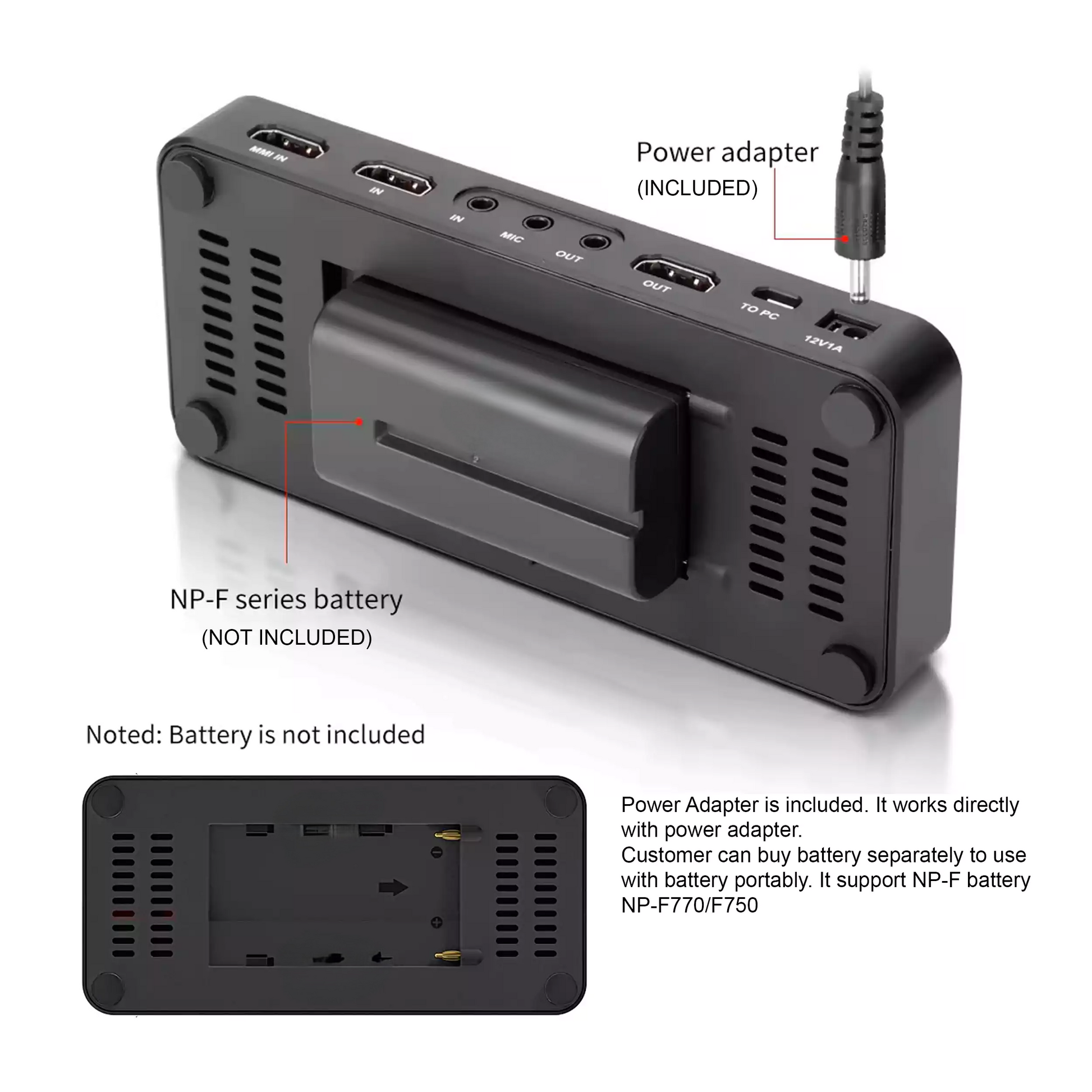

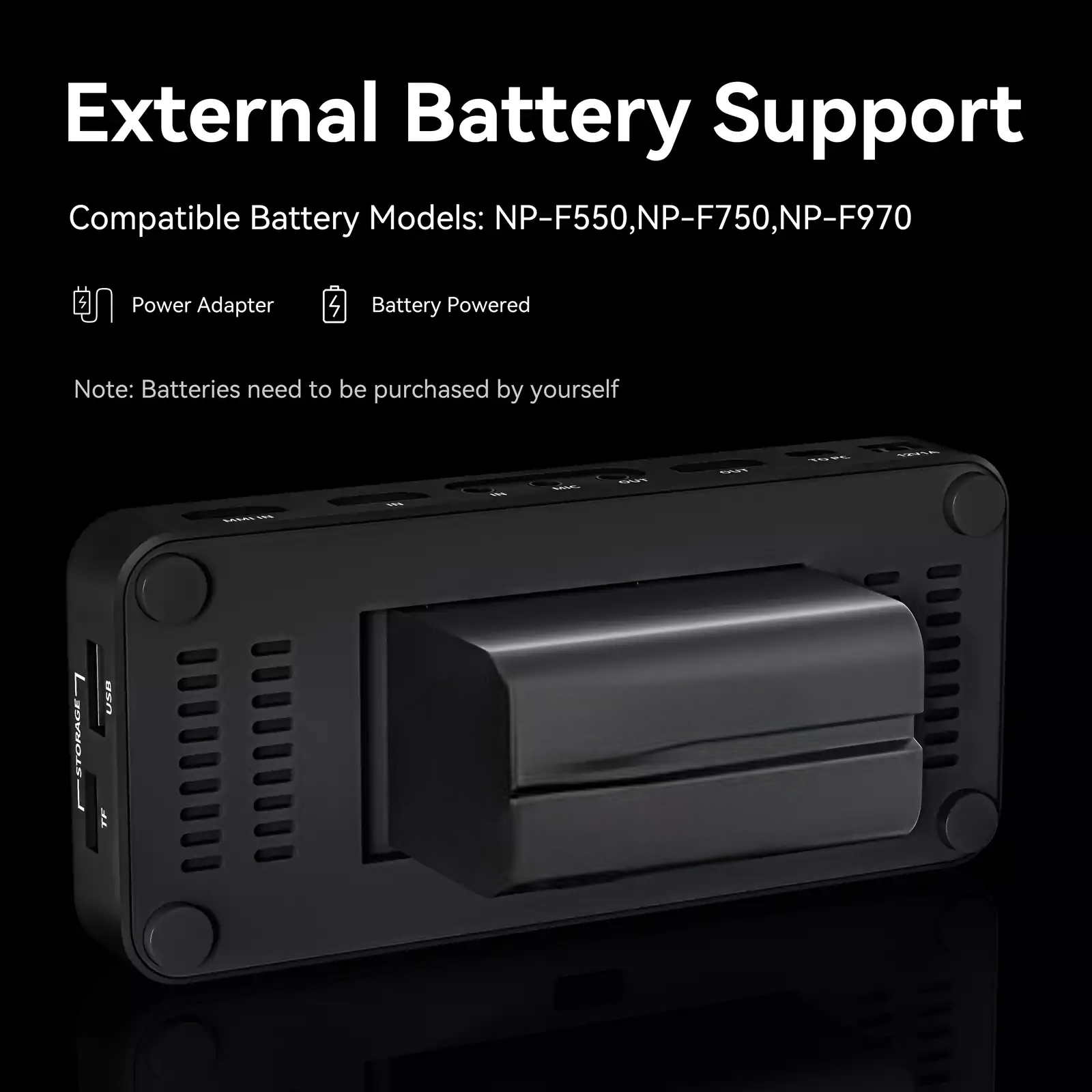

* It can also be powered by series F batteries, including NP-F550/750/970. Batteries are not included in the package.
